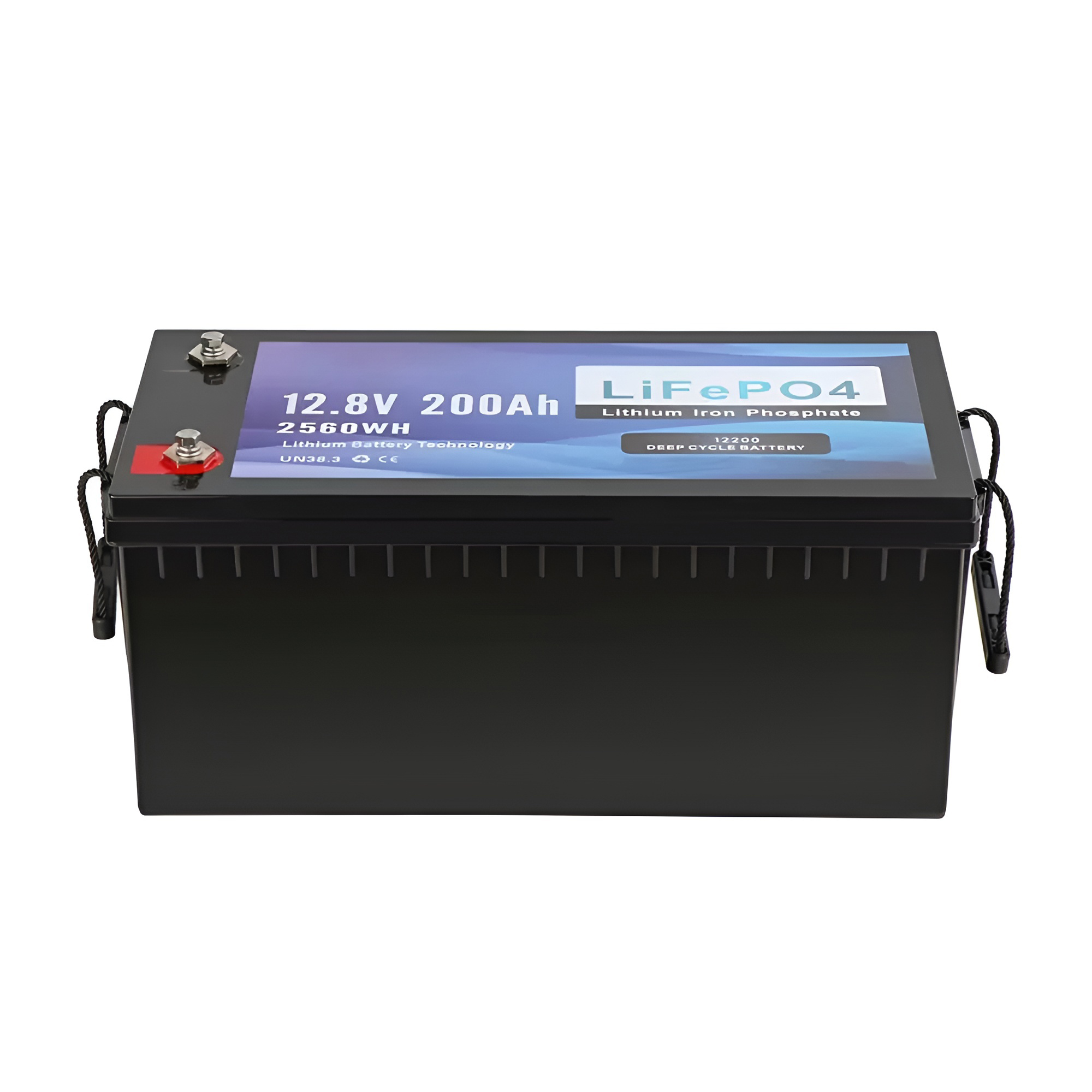

HOM-SF12200 12V 200Ah Lithium ion Battery
| Model | HOM-SF12200 |
| Customizable/OEM/ODM | Available |
| Customised Capacity/Voltage | Support |
| Cells Type | Grade A, Brand New LiFePO4 Battery Cells |
| Nominal Voltage | DC 12.8V |
| Rated Capacity | 200Ah (0.2C/25°C) |
| Energy | 2560Wh |
| Operating Voltage Range | DC 10V~14.6V (Typical: 12.8V) |
| Charging Cut-off Voltage | DC 14.6V |
| Discharge Cut-off Voltage | DC 10V±0.2V |
| Charging Current | 100A Max |
| Discharge Current | 200A Max |
| Cycle life | ≥6000 @80%DOD, 0.5C/0.5C, 25℃ |
| Shell | ABS Plastic/Metal/Customized |
| Terminal Stud | M8/Customized |

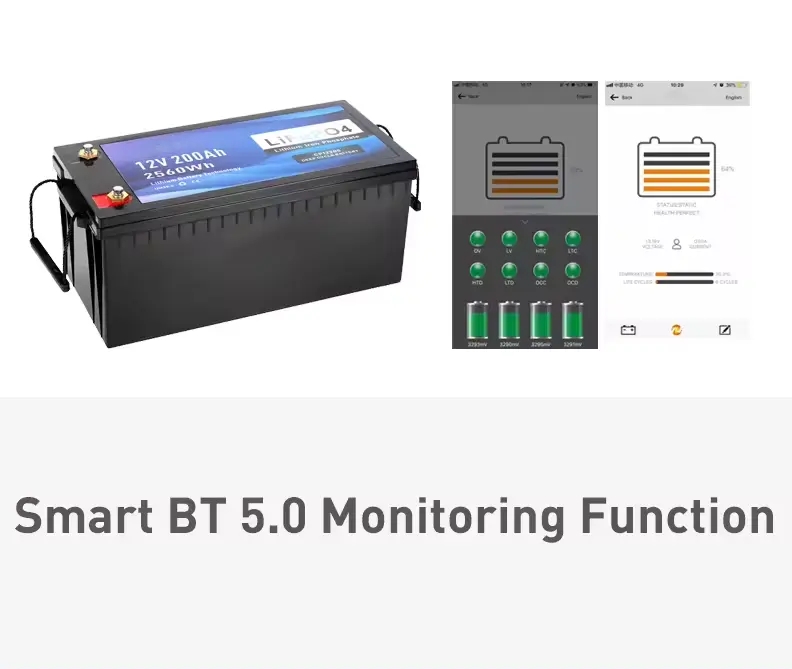

| Alarm & Potection | Overvoltage, Undervoltage, Overcurrent, Short-circuit, Overheating (BlueTooth/APP/LCD Display/GPS Tracking and other features available) |
| Applications | E-Bike, Electric Scooter, E-rickshaw, Motorized Wheelchair, RV, Caravan, Camping, Solar Power System, Energy Storage System (ESS), Golf Cart, Jump Starter, Marine, Trolling Motor, Riding Lawn Mower, etc. |
| Cooling Mode | Natural Cooling |
| Altitude | ≤4000m |
| Humidity | 15%~85% |
| Charge Temperature | 0°C~50°C |
| Dischage Temperature | -20°C~60°C |
| Storage Temperature | -20°C~50°C |
