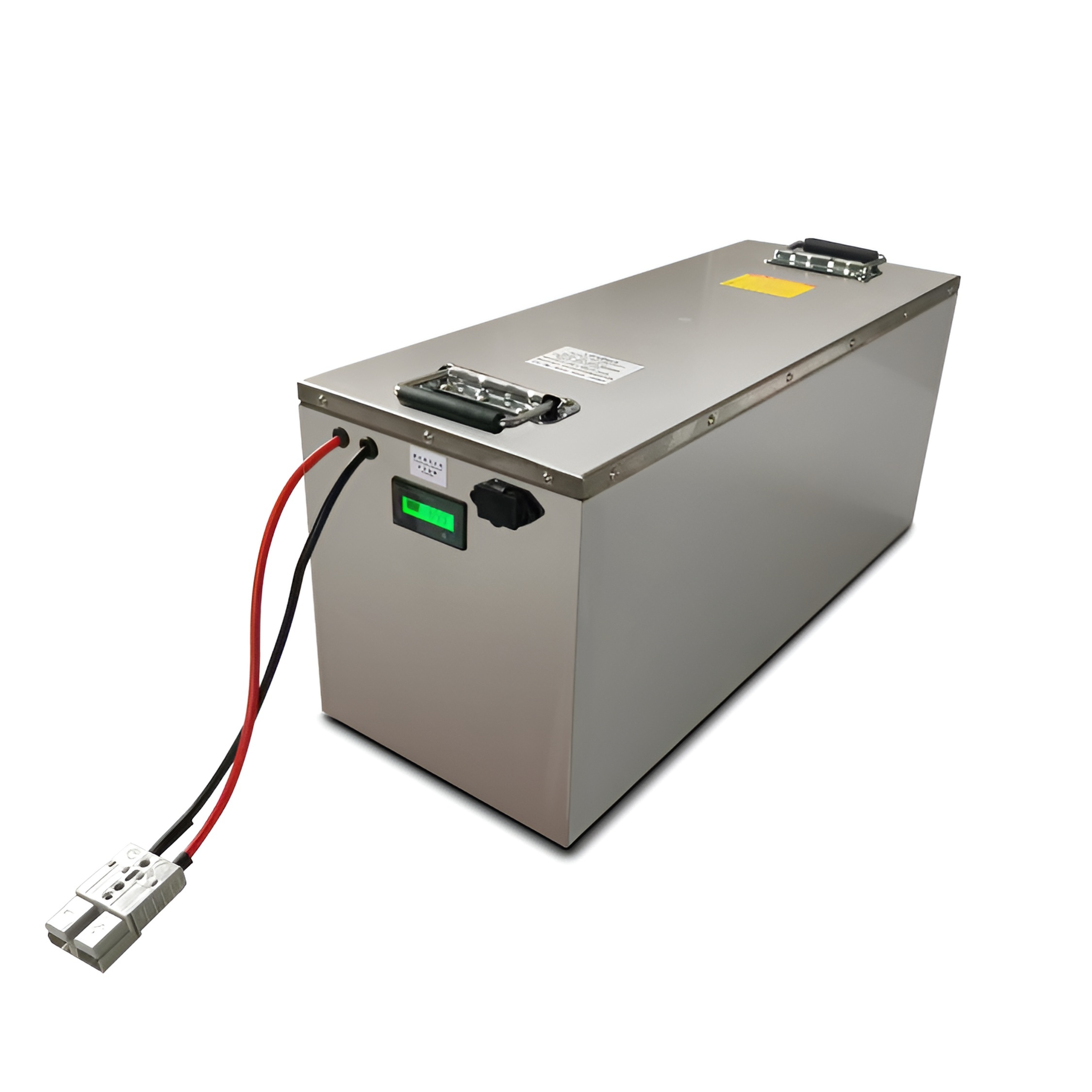

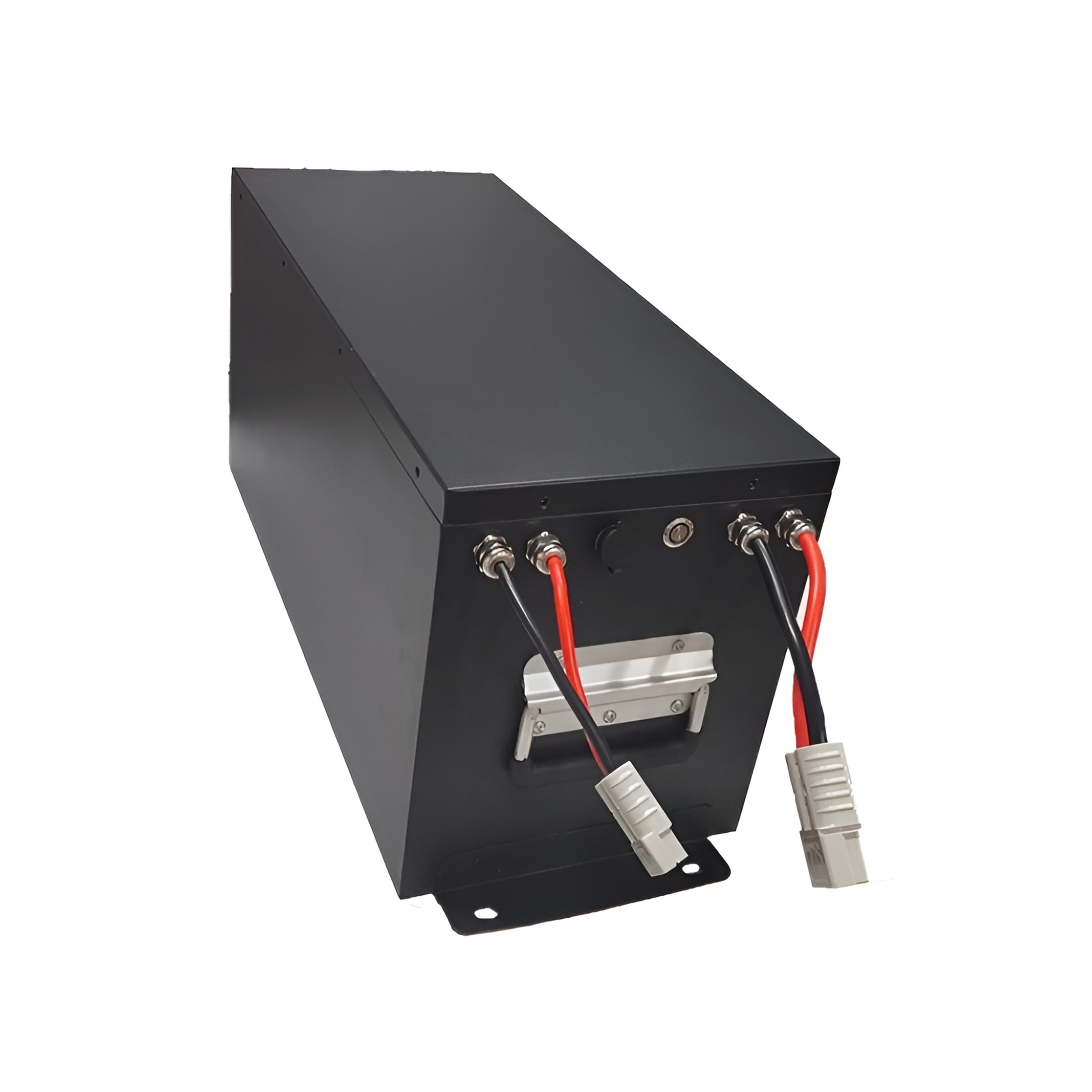

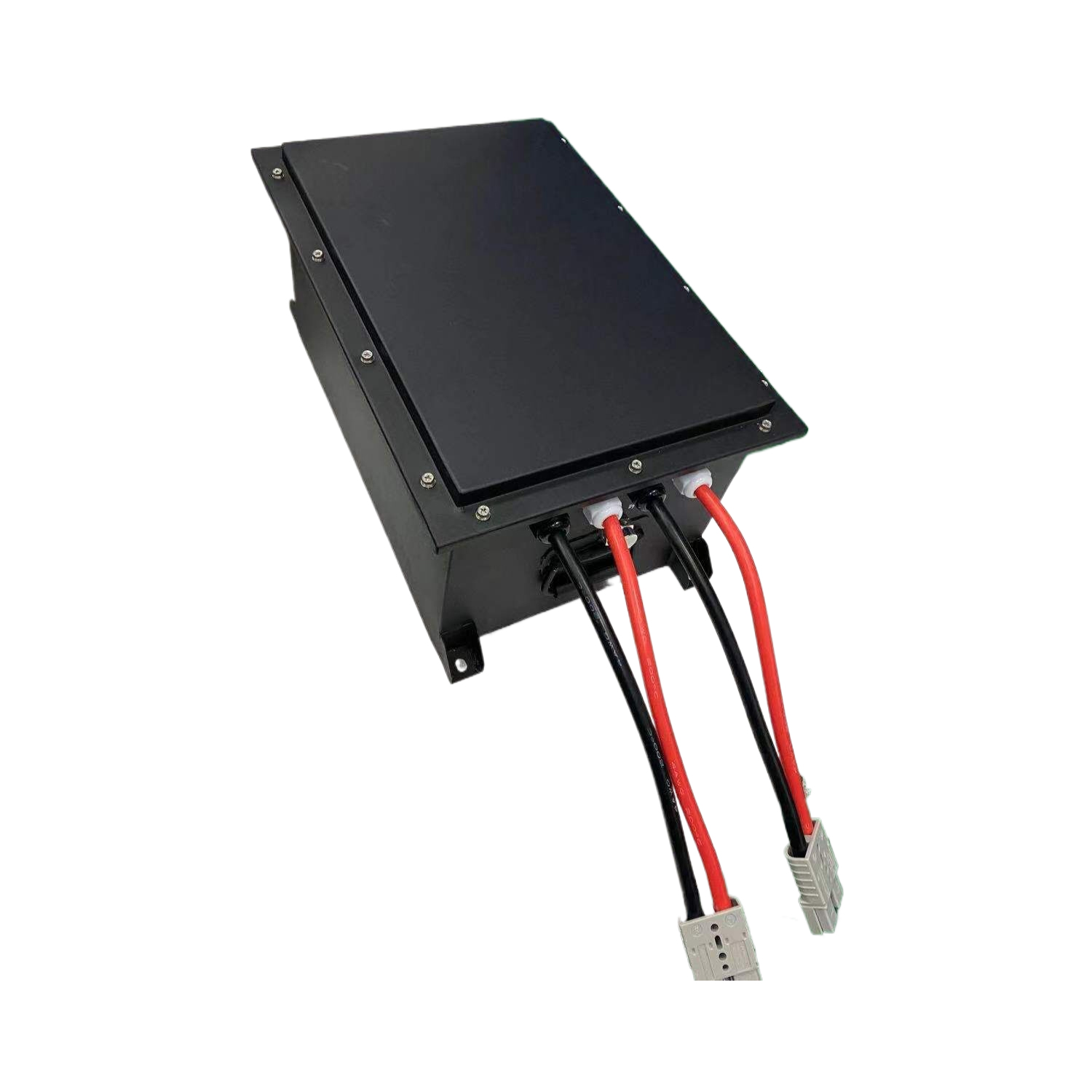

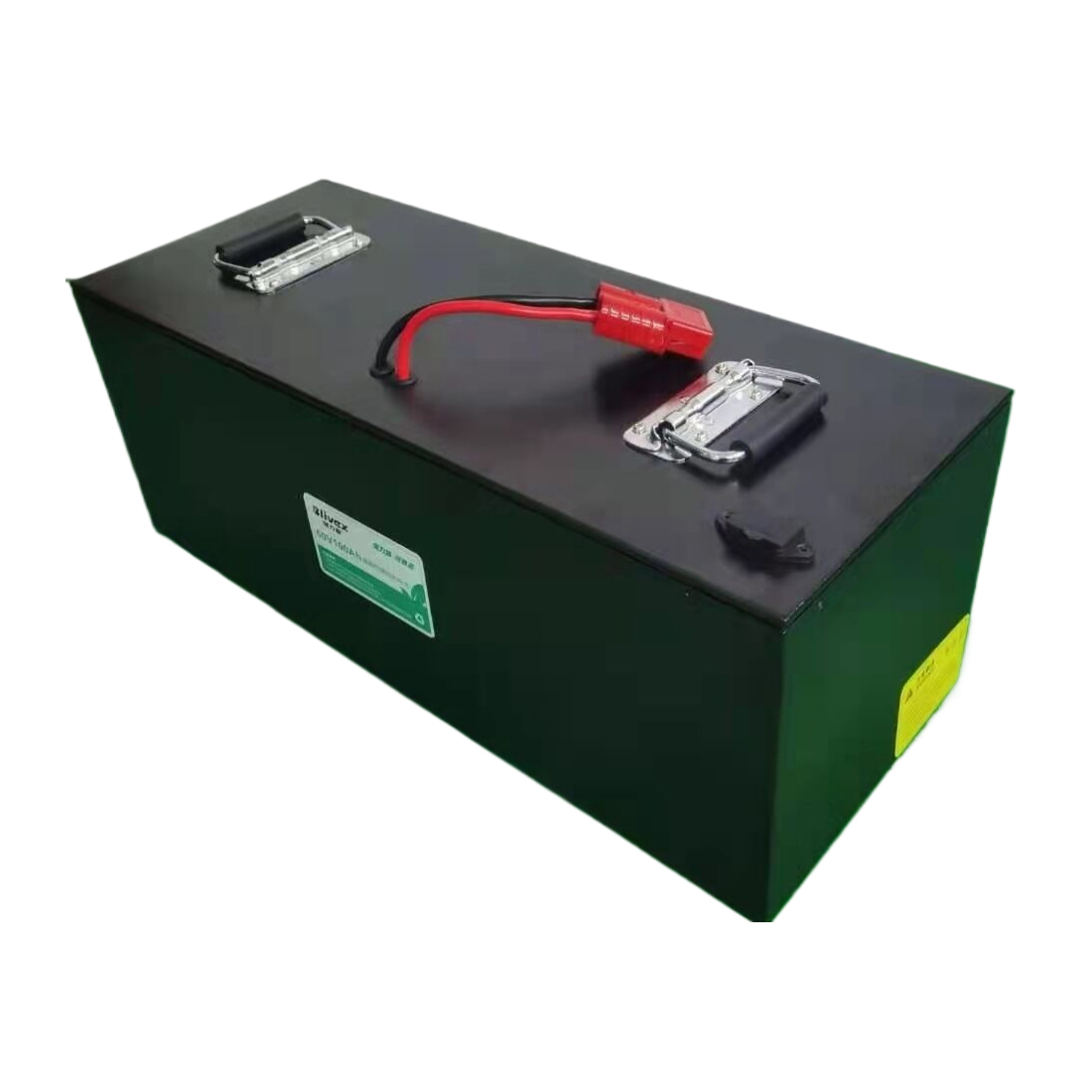

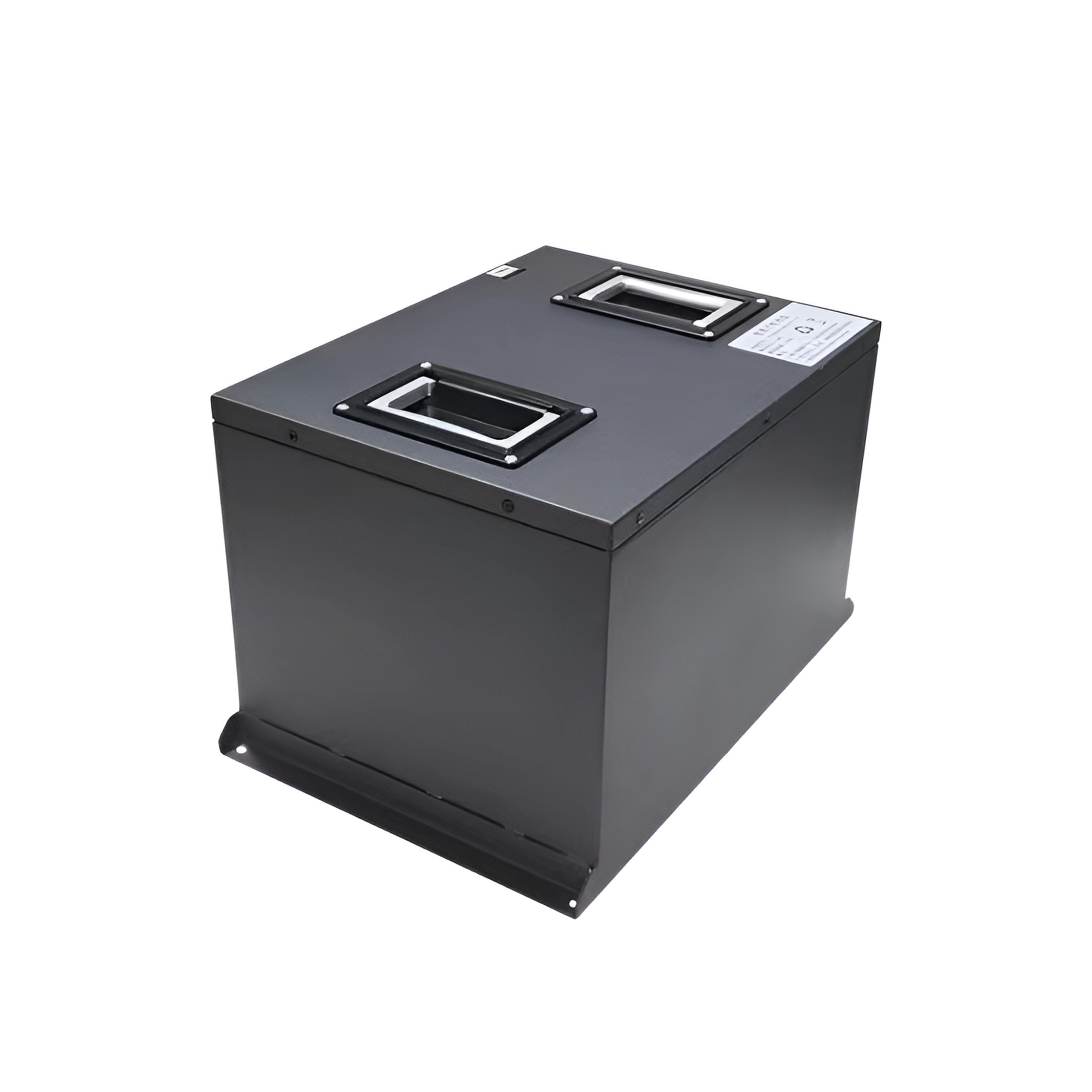

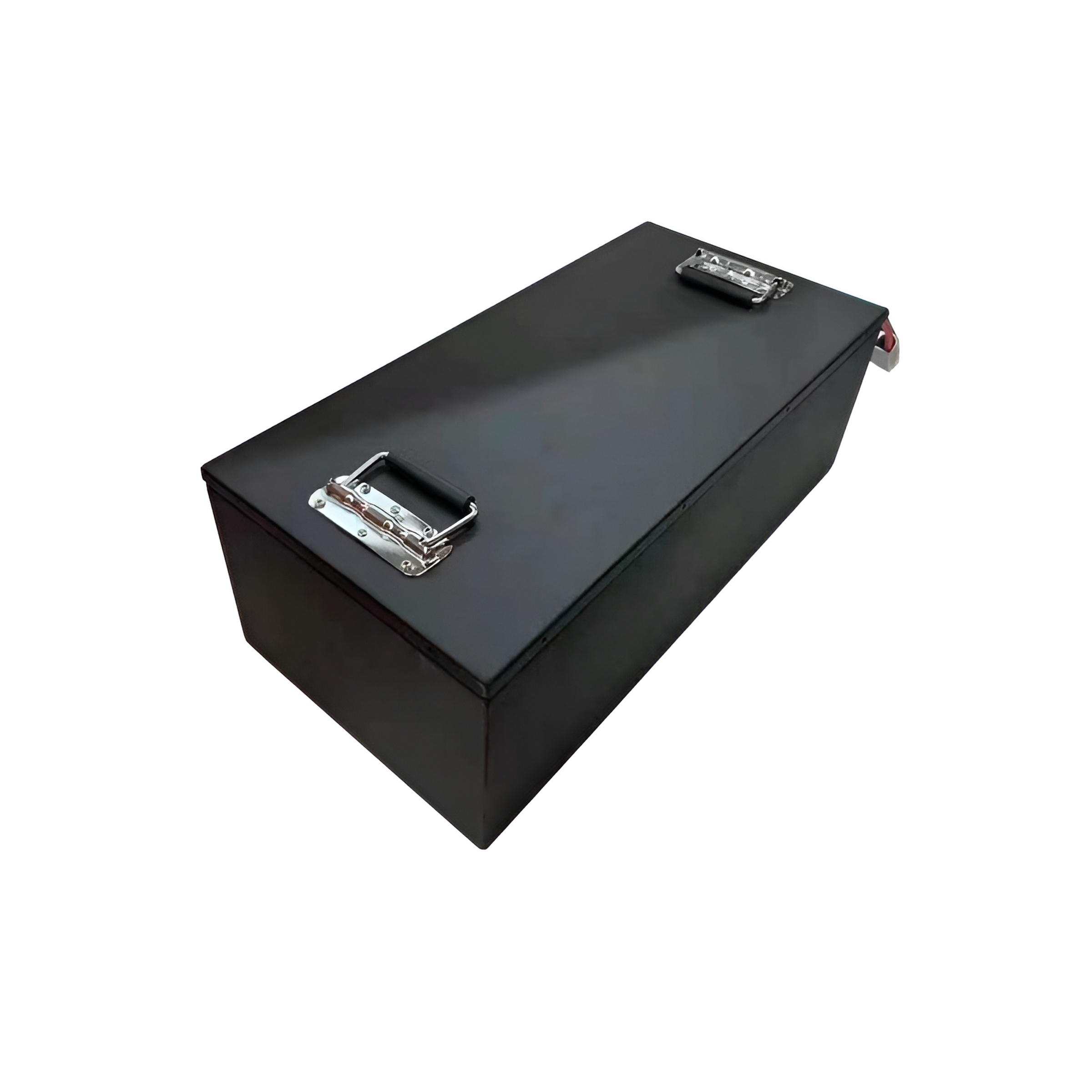

HOM-SF48100-CY 48V 100Ah Lithium ion Battery for Electric Motorbikes & Caravans
| Model | HOM-SF48100-CY |
| Customizable/OEM/ODM | Available |
| Customised Capacity/Voltage | Support |
| Cells Type | Grade A, Brand New LiFePO4 Battery Cells |
| Nominal Voltage | DC 51.2V |
| Rated Capacity | 100Ah (0.2C/25°C) |
| Energy | 5120Wh |
| Operating Voltage Range | DC 51.2V (40V~58.4V) |
| Charging Cut-off Voltage | DC 58.4V |
| Discharge Cut-off Voltage | DC 40V±1V |
| Charging Current | 50A Max |
| Discharge Current | 100A Max |
| Cycle life | ≥6000 @80%DOD, 0.5C/0.5C, 25℃ |
| Shell | ABS Plastic/Metal/Customized |
| Terminal Stud | Customized |
| Alarm & Potection | Overvoltage, Undervoltage, Overcurrent, Short-circuit, Overheating (BlueTooth/APP/LCD Display/GPS Tracking and other features available) |
| Applications | E-Bike, Electric Scooter, E-rickshaw, Motorized Wheelchair, RV, Caravan, Camping, Solar Power System, Energy Storage System (ESS), Golf Cart, Jump Starter, Marine, Trolling Motor, Riding Lawn Mower, etc. |
| Cooling Mode | Natural Cooling |
| Altitude | ≤4000m |
| Humidity | 15%~85% |
| Charge Temperature | 0°C~50°C |
| Dischage Temperature | -20°C~60°C |
| Storage Temperature | -20°C~50°C |
| Dimension (L*W*H) | about 458*300*225mm |
| Weight | about 45kg |
